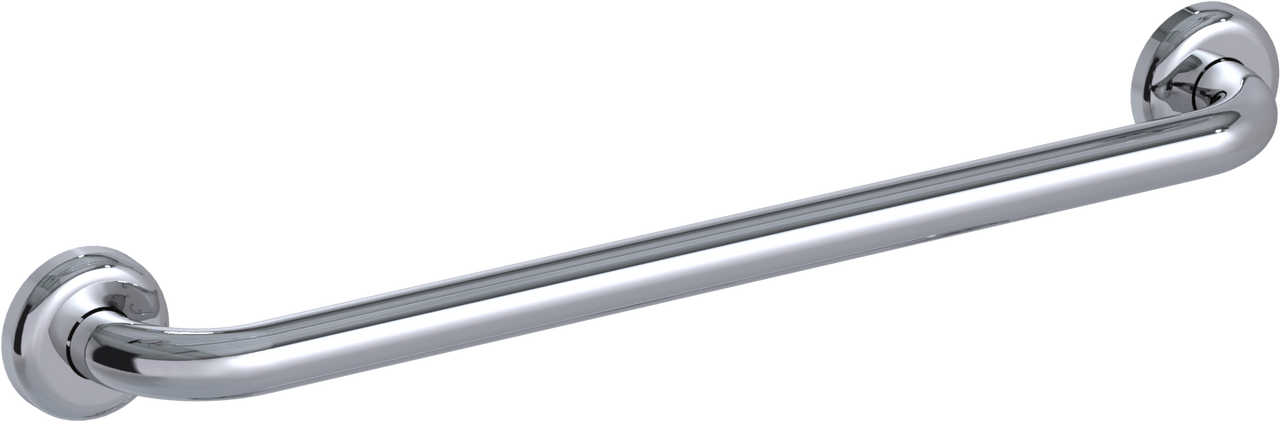

Bariatric Straight Grab Rail

Bariatric Straight Grab Rail

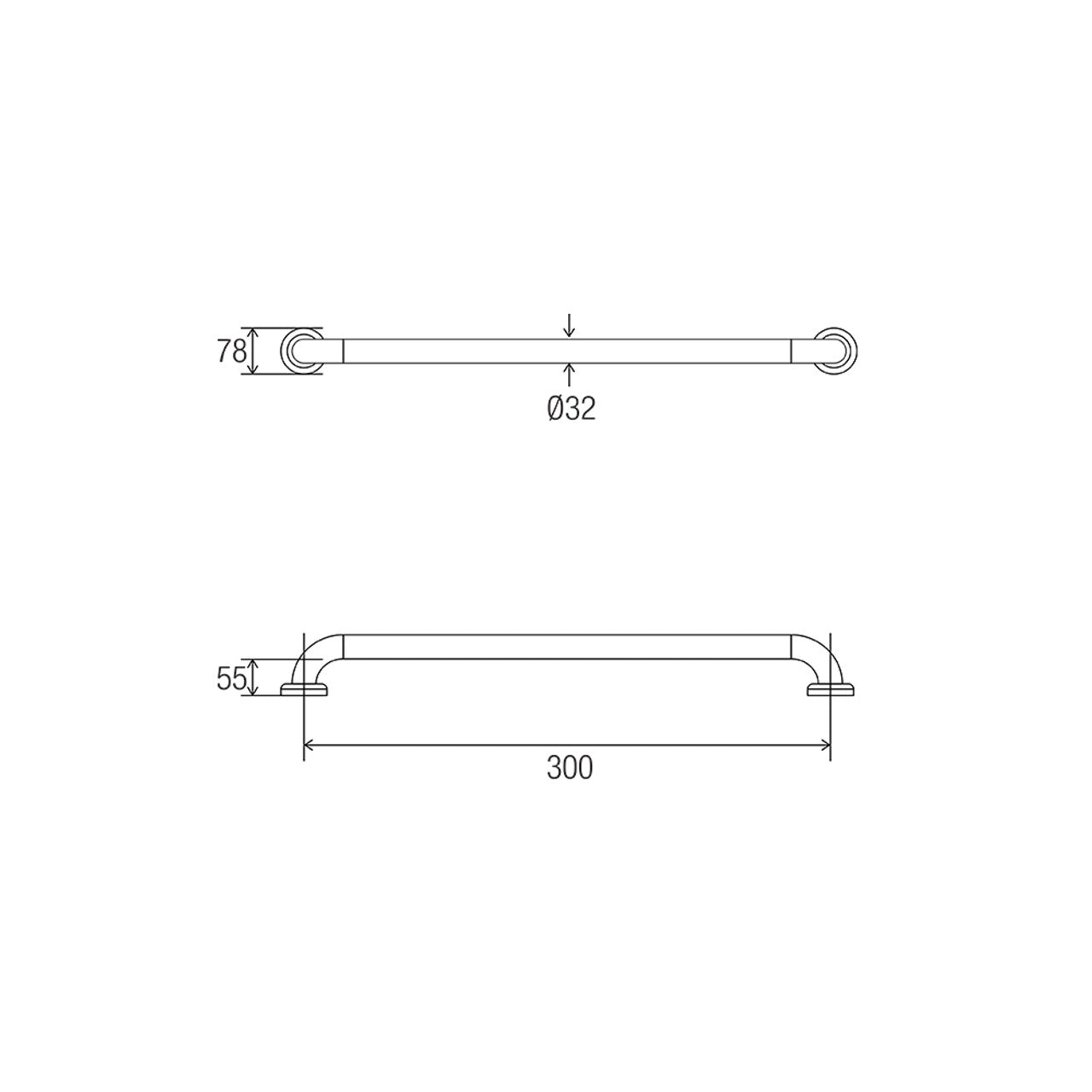

• 300mm, 450mm, 600mm, 700mm and 900mm, centre to centre
• 32mm rail fabricated from 304 stainless steel with 3.0mm wall thickness
• 78mm pre-formed domed Clam® Flange
• Wall clearance 55mm
• Stainless steel fixings screws supplied
• Meets the requirements of AS 1428.1:2021 Design for access and mobility
• Tested by QTL to 400kg (test report 203703 9236 - 06/02/2020)

Options available on request

• Welded Toilet Paper Holder (Factory Fitted)
• Shower kits
• Sizes:
  • 300mm
  • 450mm
  • 600mm
  • 700mm
  • 900mm
